Masksembles

Masksembles were proposed by Durasov et al 2021.

%%capture
%pip install git+https://github.com/lightning-uq-box/lightning-uq-box.git

Imports

import os
import tempfile
from functools import partial

import matplotlib.pyplot as plt
import torch.nn as nn
from lightning import Trainer
from lightning.pytorch import seed_everything
from lightning.pytorch.loggers import CSVLogger
from torch.optim import Adam

from lightning_uq_box.datamodules import ToyHeteroscedasticDatamodule
from lightning_uq_box.models import MLP
from lightning_uq_box.uq_methods import NLL, MasksemblesRegression
from lightning_uq_box.viz_utils import (
    plot_calibration_uq_toolbox,
    plot_predictions_regression,
    plot_toy_regression_data,
    plot_training_metrics,
)

plt.rcParams["figure.figsize"] = [14, 5]

INFO:root:Asdfghjkl backend not available since the old asdfghjkl dependency is not installed. If you want to use it, run: pip install git+https://git@github.com/wiseodd/asdl@asdfghjkl

seed_everything(0)  # seed everything for reproducibility

Seed set to 0

0

my_temp_dir = tempfile.mkdtemp()

Datamodule

dm = ToyHeteroscedasticDatamodule(batch_size=32)

X_train, Y_train, train_loader, X_test, Y_test, test_loader, X_gtext, Y_gtext = (
    dm.X_train,
    dm.Y_train,
    dm.train_dataloader(),
    dm.X_test,
    dm.Y_test,
    dm.test_dataloader(),
    dm.X_gtext,
    dm.Y_gtext,
)

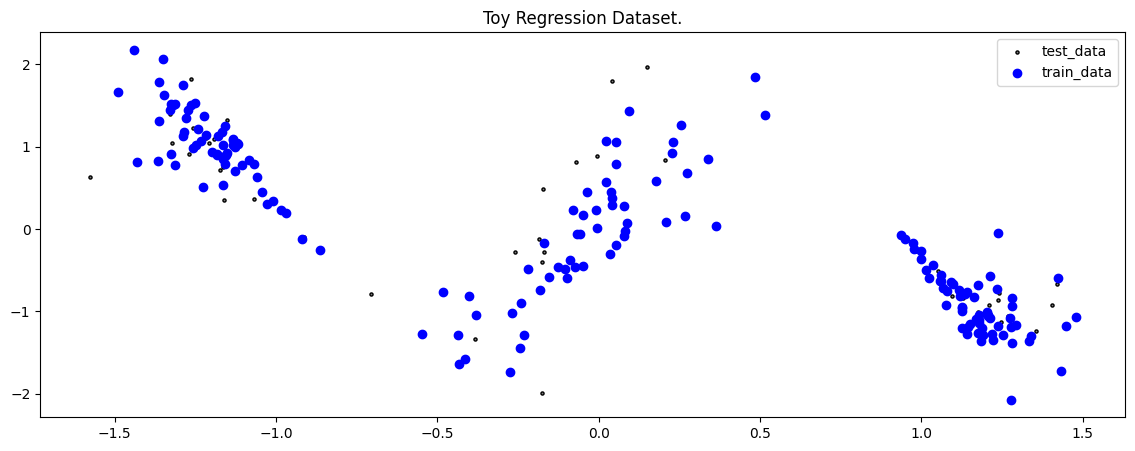

fig = plot_toy_regression_data(X_train, Y_train, X_test, Y_test)

Model

Here we are creating a deterministic MLP, with two outputs like an MVE network that is trained with the Negative Log Likelihood Loss.

network = MLP(n_inputs=1, n_hidden=[50, 50], n_outputs=2, activation_fn=nn.Tanh())
network

MLP(
  (model): Sequential(
    (0): Linear(in_features=1, out_features=50, bias=True)
    (1): Tanh()
    (2): Dropout(p=0.0, inplace=False)
    (3): Linear(in_features=50, out_features=50, bias=True)
    (4): Tanh()
    (5): Dropout(p=0.0, inplace=False)
    (6): Linear(in_features=50, out_features=2, bias=True)
  )
)

When initializing the Masksemble Module, the init will convert the model into a Maskesemble by replacing the layers with Masked Ensemble Layers.

masksemble = MasksemblesRegression(
    model=network,
    num_estimators=5,
    scale=3,
    loss_fn=NLL(),
    optimizer=partial(Adam, lr=3e-3),
)

Trainer

logger = CSVLogger(my_temp_dir)
trainer = Trainer(
    max_epochs=300,  # number of epochs we want to train
    logger=logger,
    log_every_n_steps=1,
    enable_checkpointing=False,
    enable_progress_bar=False,
    default_root_dir=my_temp_dir,
)

GPU available: False, used: False
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs

trainer.fit(masksemble, dm)

  | Name          | Type             | Params | Mode
-----------------------------------------------------------
0 | loss_fn       | NLL              | 0      | train
1 | model         | MLP              | 3.3 K  | train
2 | train_metrics | MetricCollection | 0      | train
3 | val_metrics   | MetricCollection | 0      | train
4 | test_metrics  | MetricCollection | 0      | train
-----------------------------------------------------------
2.8 K     Trainable params
500       Non-trainable params
3.3 K     Total params
0.013     Total estimated model params size (MB)
25        Modules in train mode
0         Modules in eval mode
`Trainer.fit` stopped: `max_epochs=300` reached.

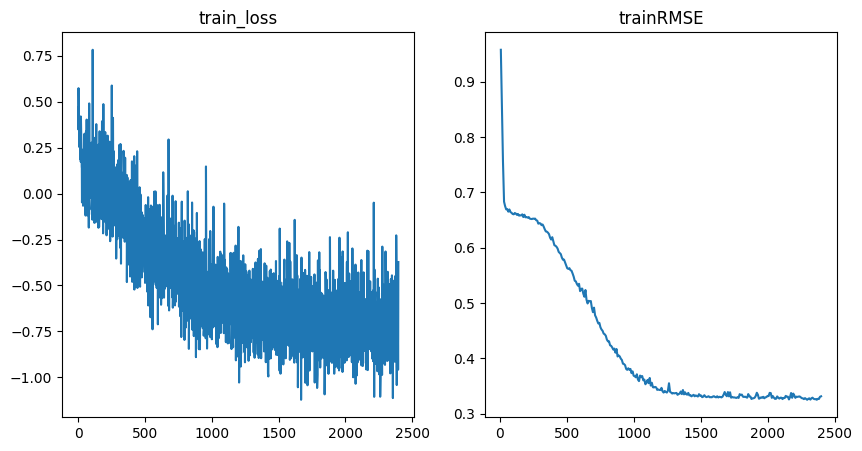

Training Metrics

fig = plot_training_metrics(
    os.path.join(my_temp_dir, "lightning_logs"), ["train_loss", "trainRMSE"]
)

Evaluate Predictions

The constructed Data Module contains two possible test variable. X_test are IID samples from the same noise distribution as the training data, while X_gtext (“X ground truth extended”) are dense inputs from the underlying “ground truth” function without any noise that also extends the input range to either side, so we can visualize the method’s UQ tendencies when extrapolating beyond the training data range. Thus, we will use X_gtext for visualization purposes, but use X_test to compute uncertainty and calibration metrics because we want to analyse how well the method has learned the noisy data distribution.

preds = masksemble.predict_step(X_gtext)
fig = plot_predictions_regression(
    X_train,
    Y_train,
    X_gtext,
    Y_gtext,
    preds["pred"],
    preds["pred_uct"],
    epistemic=preds["epistemic_uct"],
    aleatoric=preds["aleatoric_uct"],
    title="Masksembles",
    show_bands=False,
)

INFO:matplotlib.mathtext:Substituting symbol V from STIXNonUnicode
INFO:matplotlib.mathtext:Substituting symbol V from STIXNonUnicode

preds = masksemble.predict_step(X_test)

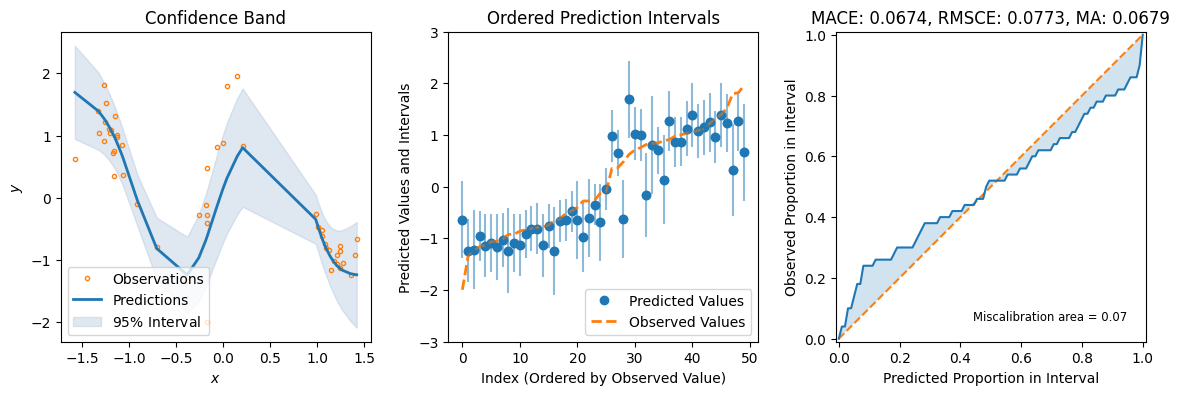

fig = plot_calibration_uq_toolbox(
    preds["pred"].cpu().numpy(),
    preds["pred_uct"].cpu().numpy(),
    Y_test.cpu().numpy(),
    X_test.cpu().numpy(),
)
